Printer Setup Instructions

The following is an outline of the steps required to set up a printer with Simple RFID


Table of Contents

Setting up the printer

Desktop Printers

Industrial Printers

Installing the Print Client

Step 1. Record the name of the PC

Step 2. Install Drivers

Step 3. Install Print Client

Step 4. Notify Simple RFID


Setting up the printer

Desktop Zebra Printer (ZD621R, ZD500R)

Desktop Printronix Printer (T800)

Industrial Zebra Printer (ZT411, ZT410)

Industrial Printronix Printer (T6000e)

Installing the Print Client

Step 1. Locate the name of the PC

You will need to provide the PC name to Simple RFID in order to connect the host PC to your account:

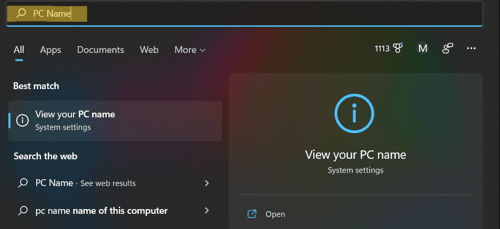

From the search window on your Windows PC, type "PC Name."


5.1pcname-1

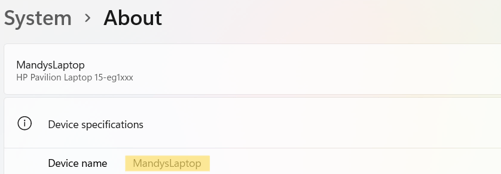

• Under System > About, you will find the name under "Device specifications"

• To the right of the "Device name" you will see the name of your PC. You can keep the current device name or rename it.

*If you rename your PC, you must restart your computer before continuing to Step 2.


5.1pcname2-1



Step 2. Connect the printer to the PC

The printer can be connected to the PC via USB or Network.

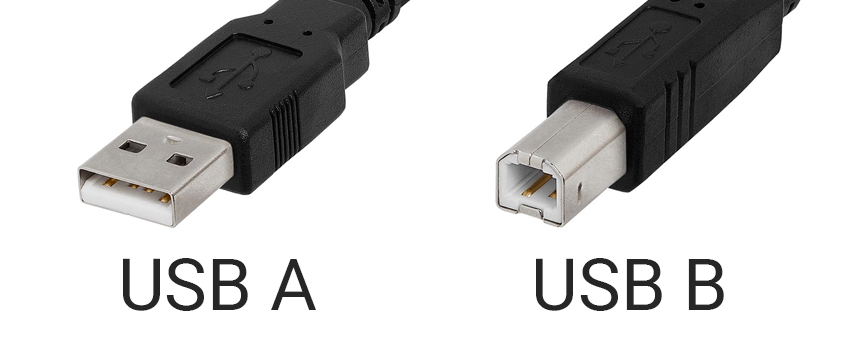

If connecting via USB, plug the provided USB cable into your PC and printer. The USB-A connector should be plugged into the PC, while the USB-B connecter should be plugged into the printer:



If connecting via network, use the provided CAT6 cable, or a network cable of your own, to attach the printer to your network.

If your printer will be connected via network, make sure the printer and the PC where the print client is installed, are on the same LAN.

Step 3. Install Print Client

Currently, the Client must be installed on a Windows PC.

Download the Print Client:

  1. Login to the web portal

  2. Click on your account name in the top-right corner

  3. Click "Resources"

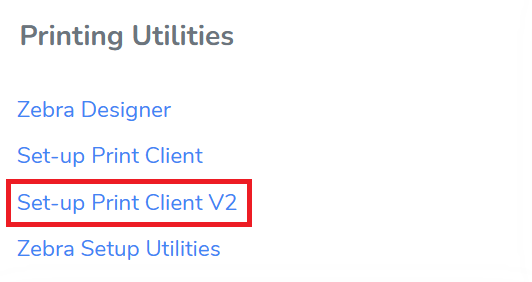

  4. On the resources page, under Printing Utilities, click "Set-up Print Client V2" to download



Install Client

Next, open the downloaded .msi file to install the print client. Follow the steps in the installer by clicking Next a few times, then eventually Finish.


Back to Top


Step 4. Notify Simple RFiD

Finally, please notify us of your new device so we can connect it to your account.

Email: support@simpleRFID.com

• Please make "Connect Printer" the subject

• In the body of your email include:

• Your company name


The name of the PC


Name of the location where your printer is connected


This refers to the physical location where the printer is located (e.g. which warehouse or store the printer is in). If you are setting up your printer before your first training, you can disregard this step as you will not have any locations set up yet.

After sending the email, a member of our team will connect your printer

⇒ Please allow up to 8 hours for a response, notifying you that the printer is connected (expect a shorter wait time during normal business hours: 9-5pm MST)

Once the printer is connected, it will appear on the Settings > RF Printers tab


Back to Top
